LAMBRETTA DYNO GRAPH POSTING AREA

Post your Lambretta dyno graphs here! But graphs & spec info only, keep the chat in the 'dyno chat' section ;o)
User avatar
Adspeed
registered user
Posts: 301
Joined: Thu Jan 08, 2009 6:46 pm
Contact:

Sun Nov 08, 2009 8:48 pm

Post your graphs here!! ;)

Although a dyno should be used as a development tool they are a perfect way to show others the results of many nights in the garage with the porting tool or some of the top tuners handy work but generally speaking to show the characteristics of your engine.


So whether your chasing big HP figures or got a practicle road/rally tune why not post them here with a little spec of the engine :)

Those guys that have posted already on the forum why not re post them here so they can easily be found in the future! :)

User avatar
Adspeed
registered user
Posts: 301
Joined: Thu Jan 08, 2009 6:46 pm
Contact:

Sun Nov 08, 2009 9:04 pm

Ok I'll start things off......


Plan of attack - 'Proper usable tune, minimal work needed - basically a reliable machine that can be produced from easily accessible items that work together.'

No welding, not massive transfers, 65% exhaust (could go to 70%!!) basically around two hours work in matching cylinder, packing plate and a little port work. No doubt I could get more pushing different areas but its just sweet and a nice ride to be honest!!

TS1 - 70mmx60mm
MB Piston
YAM Rod
OKO 30mm carb
Fat Mamba exhaust.

21.84HP peak , 20HP+ for over 2000rpm and torque of something like 16lb/ft although don't have the graph, previously peaked in line with HP.

With the SX box and 16x46 I can sit at 70mph at 6300rpm (19HP) with plenty left in the bag to pass vehicles etc and to take it to 80mph+.

Blue graph represents a std TS1 with JL3 and 30mm Mikuni for comparison.

User avatar
Adspeed
registered user
Posts: 301
Joined: Thu Jan 08, 2009 6:46 pm
Contact:

Mon Nov 09, 2009 9:42 am

Posted on behalf of Bufficus, a really good write up of his own work!

TS1 from standardish spec to home tune 230.

The first graph shows a pretty standard TS1 with no porting.

MB piston 70mm
AF race crank
AF head
Mikuni TMX 30mm
ScootRS pipe
Indian static stator timed at 18 degrees
Matched casings
Yamaha reed block (standard yam reeds) and MB inlet


When I first had this dynoed by John at JB tuning I was a little underwhelmed. I was hoping for 20bhp, but it came in at just under 19. :(
John was surprised at my dissapointment and said 19 was pretty good for a standard barrel on his dyno. A couple of other standard TS1s made between 17 and 18 that day. Going by Sticky's dyno comparison article in scootering JB seems to have the lowest reading dyno around.

Changes had to be made. I decided to tune the barrel myself and change a few components.

60mm Alpha crank
MB head/AF head
Devtour pipe
Mikuni TMX 35/TMX30
exhaust timing 185 degrees
transfers 125 degrees

The motor was dynoed again by John ( sorry no graph) and this time put out 22.5 bhp @ 7125rpm. Torque 15.5ft/lb.
It was dynoed with both an AF head and an MB head, which made no difference and also with a TMX 35 and a TMX 30, again no real difference.

With this spec the moter was a joy to ride, but I decied to go a bit further.

Minor changes were made to the barrel
Exhaust timing was changed to 190 degrees
Transfers 133
JL4 pipe
V force reeds
Augusto box
Dellorto VHSB 34mm carb

The carb was changed because it was impossible to jet the TMX 35 cleanly at 1/4 throttle (unpleasantly rich) I was on the top clip of the leanest needle :o and had nowhere else to go. However, I did try modifying a slide, but went too far :oops: so at £35 a go I decided to stop with the Mikuni.


Now reading 25.3 BHP @ 8151rpm and 17Ft/lb torque.
Of course the power has moved up the rev range and is not as nice to ride for touring, but it is fun in the right conditions.

User avatar
red
registered user
Posts: 1031
Joined: Thu Jan 15, 2009 8:40 pm
ebay user ID: ironontour
Main scooter: Scomadi TL 250 (Ltd Ed No.3)
Location: Blyton,Lincolnshire
Contact:

Tue Nov 10, 2009 8:10 pm

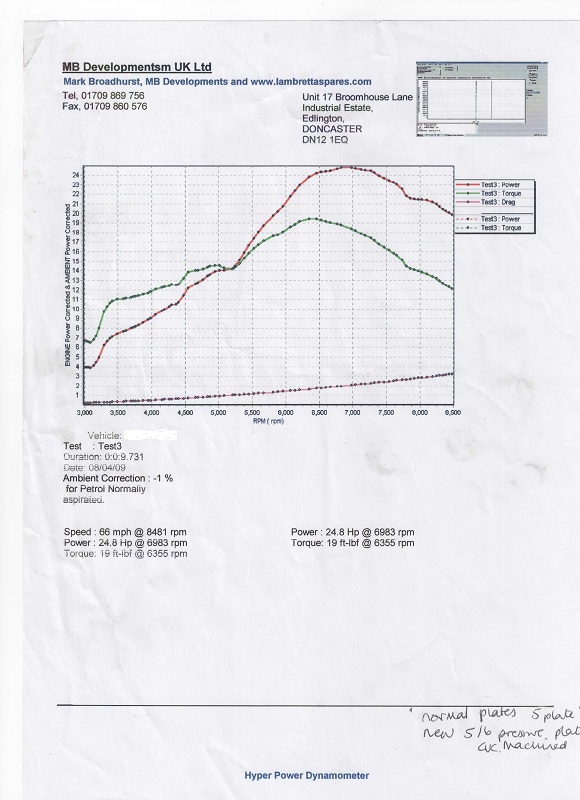

Here's Jackpot's dyno graph

I do not try to explain why I ride Lambrettas,
For those who understand, no explanation is necessary,
For those who don't, no explantion is possible.

User avatar
paulmgreen
registered user
Posts: 589
Joined: Sun Jan 04, 2009 4:34 pm
ebay user ID: hgracingscooterparts
Main scooter: Lambretta Group 4 Race 200
Location: Grantham
Contact:

Tue Nov 10, 2009 10:15 pm

My Dyno Chart

Tuning by Chalky White at Replay Scooters

Rapido 200cc 31.5 HP 20.7 Lbs Torque



YouTuve Vlog channel - https://www.youtube.com/channel/UCEhrgL ... vY_4Px2WTg

www.JPPLambretta.co.uk

Sponsors Replay Scooters JPPLambretta

User avatar
GP240
registered user
Posts: 209
Joined: Sat Oct 24, 2009 9:38 pm
Location: Manchester
Contact:

Thu Nov 12, 2009 9:23 pm

TS1 240 (225 with 62mil crank)

Dyno'd at Chiselspeed




Old Lambretta's never die, they get tuned..................

fishi
registered user
Posts: 164
Joined: Wed Jan 07, 2009 12:09 pm
Contact:

Fri Nov 13, 2009 11:40 am

Rapido Race 225cc with some porting 8-)
58 AF Crank
TMX 35
JL Race
18x47

fishi
Last edited by fishi on Fri Nov 13, 2009 4:44 pm, edited 2 times in total.

User avatar
Mag
registered user
Posts: 222
Joined: Thu Nov 05, 2009 11:02 pm
Main scooter: Carbon GP TS1
Location: Sunderland by the Sea
Contact:

Fri Nov 13, 2009 7:35 pm

Mr Broadhurst showed me this from his 1993 250 LC Sprinter. Is 40hp a lot? How much is that in modern money?


User avatar
mawso
registered user
Posts: 462
Joined: Wed Jan 07, 2009 8:47 pm
Location: Harrogate
Contact:

Mon Nov 16, 2009 12:33 am


This was my old engine. Ralph Saxleby 190 using a bored out 150 barrel to 65mm (it eventually went to Wiseco 65.5mm), top and tailed cylinder. and Standard Italian GP 58mm / 107mm crank. Casings were standard and unported as was mag flange. LI150 15/46, JL2 (KRP2), TMX 32, AF light flywheel. I don't remember what the timing was set to. It was dyno'd at Chiselspeed.

The comparison is a friends MB touring TS1, Taffspeed pipe, 32VHSA.
Last edited by mawso on Mon Jun 14, 2010 11:29 pm, edited 2 times in total.

vespanic
registered user
Posts: 108
Joined: Sun Mar 08, 2009 12:16 pm
Contact:

Thu Nov 19, 2009 10:10 pm

This is the dyno reading for my TS225 stage 2 road tour tune. Alpha crank, racetour piston, 35 Mikuni, Devtour exhaust. Standard GP200 gearing. Hope it can be read ok?
