Scoot RS ignition switch

[Doom Patrol]

A friend of mine is trying to wire up what looks like a ScootRS ignition switch without the aid of any diagrams. I know it's a bit of a funny one with only the two positions, but that's about the extent of my knowledge. Can anybody point me in the direction of a wiring diagram please?

[RICSPEED]

if your not sure what the wires are you are going to have to put some power through it and use a test lamp

[Doom Patrol]

Thanks Ric. I'll relay that too him.

[T5-190]

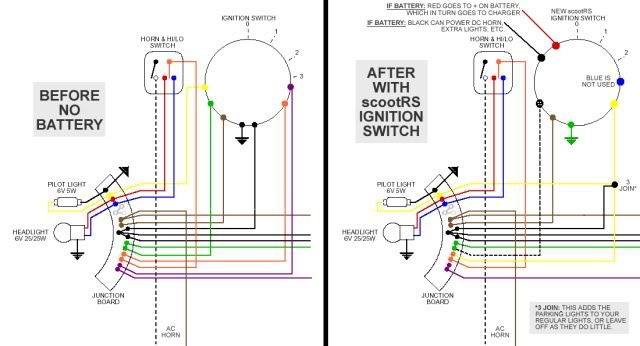

Here you go. I too have the same switch, its still the box and needs fitting. The only thing I don't like about it is that it has Honda written on the keys.

[RICSPEED]

can you post a pic of the switch??

[Doom Patrol]

Hope Randall won't mind.

[giankx]

That switched has a very short life.
Bought one last year and the cables looked very thin and to much brown like they received too much tension.
It didn't last long and a beatiful day, after a ride, i couldn't switch off the scooter because the key was blocked ....
I'm using a Casa one and no worries since then....

[Doom Patrol]

Good information giankx. Thank you.

[chris2470]

Been using one of these for 3 years and behaved perfectly, would totally recommend no question.

[ArKaTxU]

Mine broke after 6 months.
Is the Honda type.
