New engine build TS1 questions....

[alanscottj]

150 spigot would fit in the gap wider 200 wont

So I need a mag housing for a 200?

mag housing dremmel time

Ah, I see, I'll Dremel the bit of the mag housing that's hitting the skirt of the barrel, rather than Dremel the barrel

[Yanker]

If you have the time and will: Fit the mag into the empty crankcase chamber, blend the mag to the case (transfer + spigot mathching the 200 transfer profile)

[alanscottj]

If you have the time and will: Fit the mag into the empty crankcase chamber, blend the mag to the case (transfer + spigot mathching the 200 transfer profile)

Cheers Yanker, on it tomorrow

[shocky]

Page 51 of stickys book explains

[alanscottj]

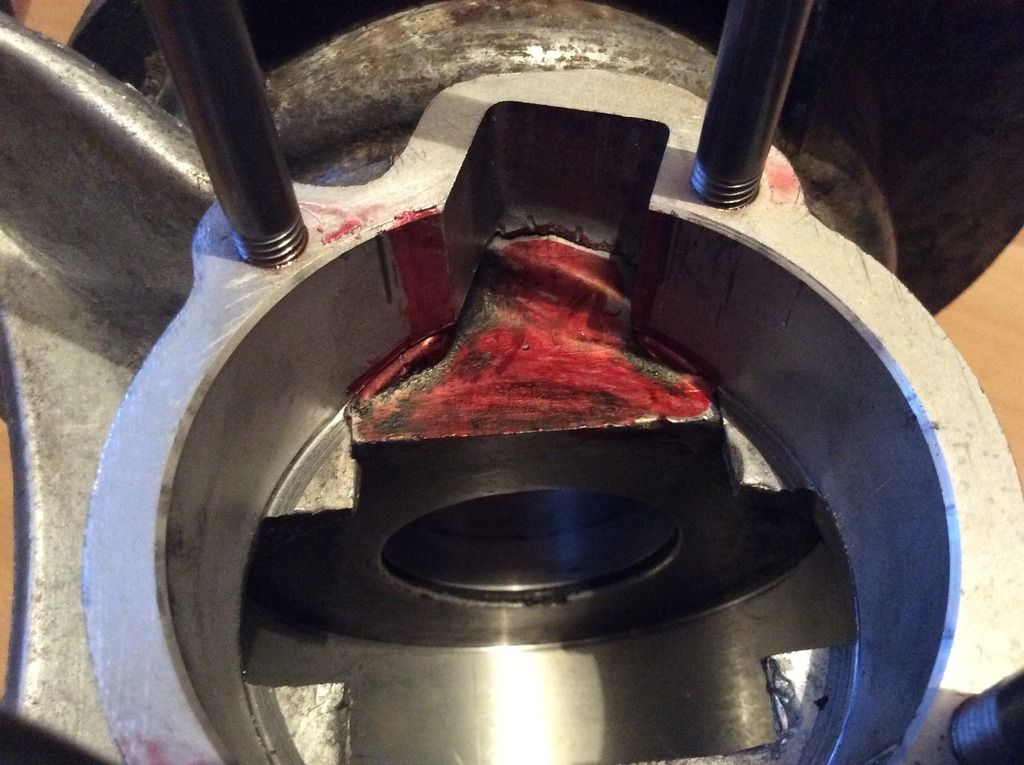

Ok, I have marked out the parts that need matching and cleaning up in red marker. Does this look about right?

[eden]

don't take it all the way down the side of the stud as far out as you have marked, angle it slightly to avoid weakening the stud hole too much! and to leave some gasket area at the inside side of the stud.

[eden]

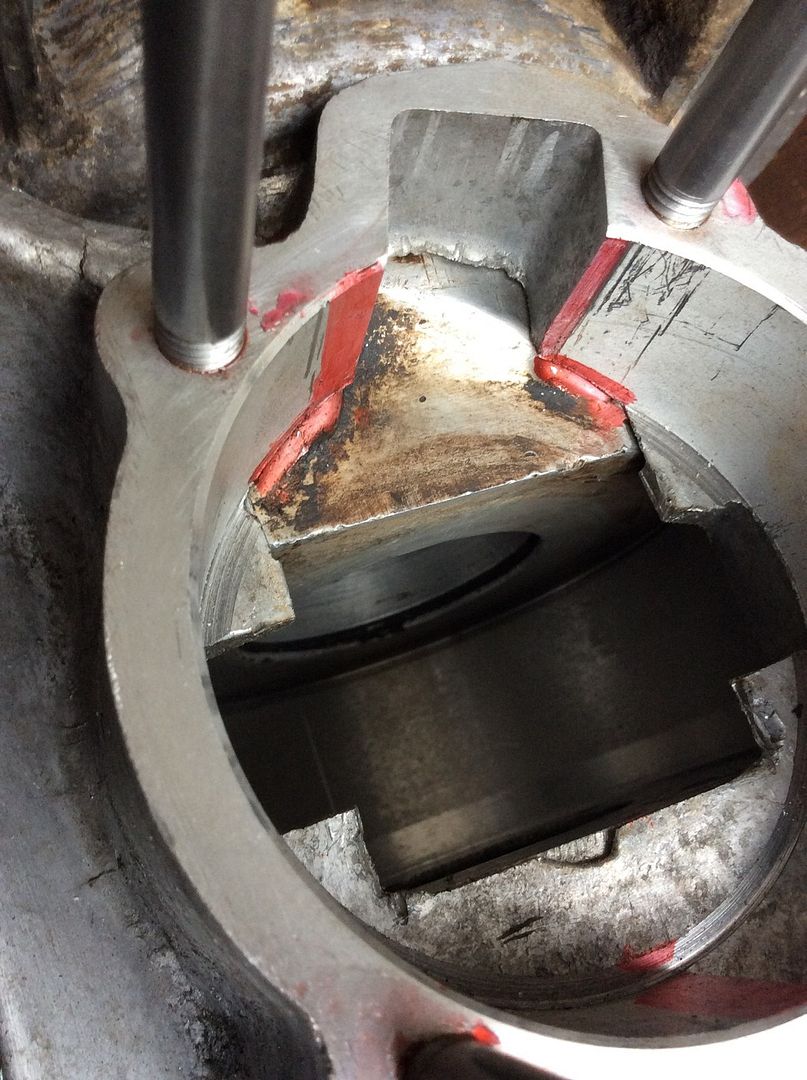

And on the pic that shows the mag, take out the flat area on the mag as that is reducing area big time.

the flat area at the back of the port*

[alanscottj]

And on the pic that shows the mag, take out the flat area on the mag as that is reducing area big time.

the flat area at the back of the port*

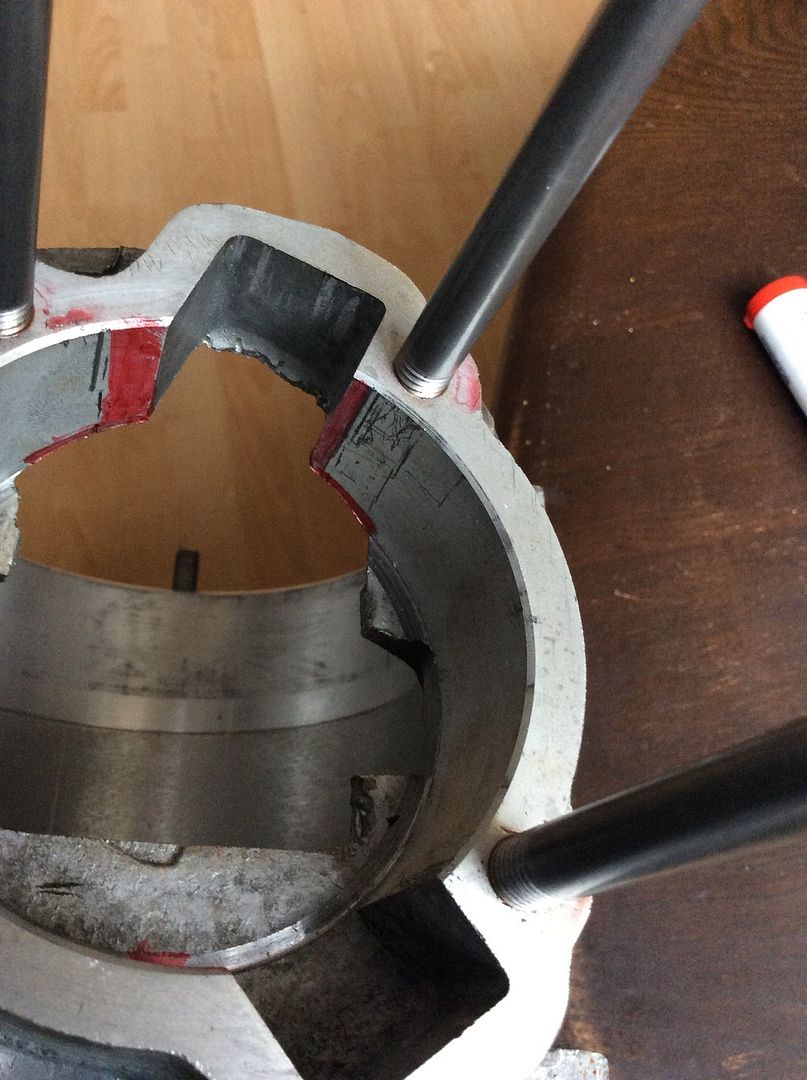

The bit I have coloured in now Eden?

[eden]

not all of it just the bit at the bottom of the port so the flat bit to the bottom left of the port in the pic is at the same level all the way back to the edge of the port.


duno if that makes sense or not


edit: the step in the mag at the base of the port would be a better way to describe it

[eden]

have a look at the mag pics in here https://www.facebook.com/eden.bakewell/ ... 503&type=3
