Vespa Reed Valve Fuel Pump

[gimp1971]

mines on the reed block above the reeds

[Juti]

Here's my setup if that helps you..

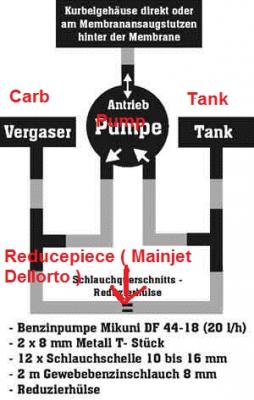

Schematic installation picture (source: GSF)


Vacuum connection on my MMW2 membrane:


Mikuni vacuum pump connection in my case:

- blue arrow = vacuum connection from the membrane
- yellow arrow = return line to the tank (I have a banjo attached next to fuel cap on top of the tank. Mikuni SI main jet inside the return pipe restricting the flow)
- purple arrow = Y-connection
- red arrow = fuel line to carb
- green line = line from the tank (hi-flow tap in the tank)

Also required:
- Mikuni TMX35: smaller float needle valve needs to be fitted. Otherwise it will flood because the bigger original needle cannot take the pressure. I don't know what is the case with Dellorto.
- fuel tap breather pipe which is inside the tank needs to be plugged when fuel pump in use
- buffer rubber between the pump and frame/casing etc. is recommended
